Integrel E-Power is an alternative power source and system solution to a conventional diesel generator set-up onboard boats. It generates spare and unused power through normal engine use and stores this power in high capacity batteries for later use to run onboard appliances on-demand,  Integrel have created a helpful intro video below that explains how this works. Fischer Panda UK - Power Solutions collaboration with Integrel Solutions comes from our existing longstanding technical partnership with Mastervolt for the Marine and Specialist Vehicle markets, as the Integrel system seamlessly integrates with Mastervolt's Li-Ion range of batteries.

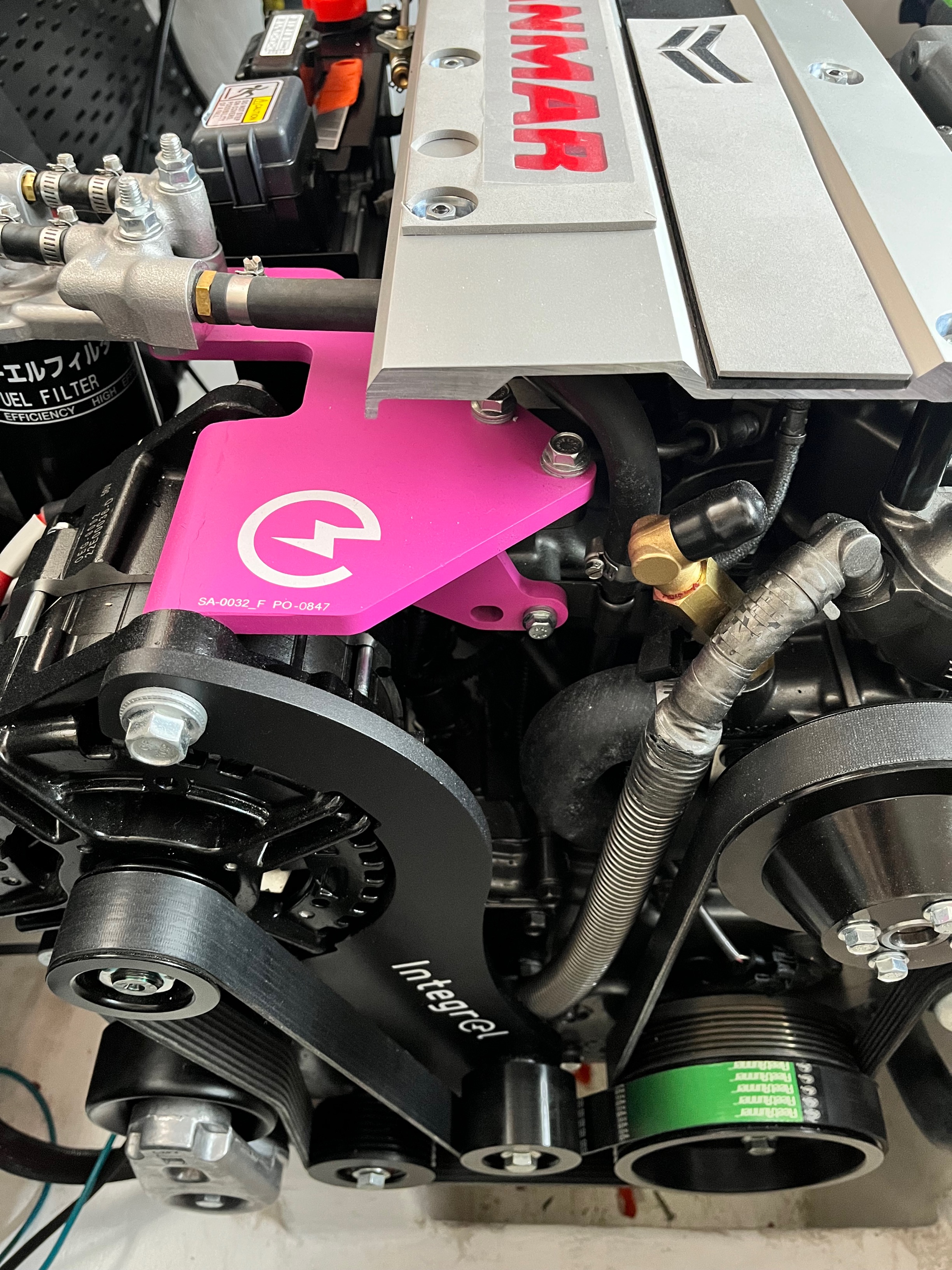

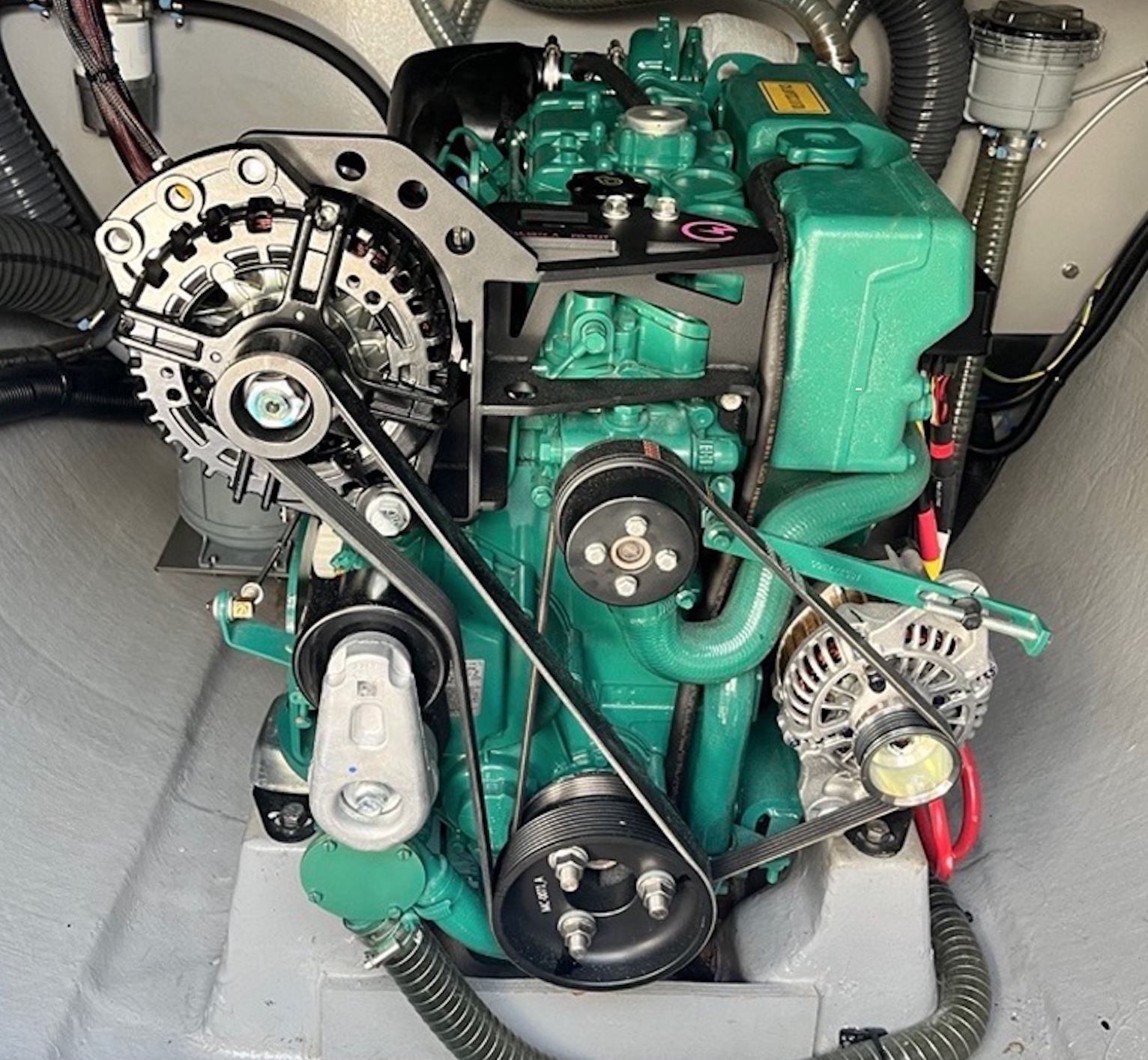

Integrel E-Power, which is fitted to the inboard engine of a boat, generates energy seamlessly under normal operation. An existing engine has a significant amount of spare capacity, Integrel harnesses this spare capacity to generate electrical energy to be stored for later use; all while keeping an engine running at optimum performance.

Accompanied by the Integrel Intelligent Controller, this converts raw electrical energy from an inboard engine into usable energy at 48 volts. Energy production is closely monitored by sensors on each battery bank to keep the batteries safe. The stored electrical energy is then used to power heavy-duty 48 volt items such as bow thrusters and winches, as well as 12 volt domestic items like your fridge, instruments and house lights.

It also powers your 110 volt or 240 volt AC devices like air conditioning, washer, freezer, ice machine, espresso machine, induction cooker, hairdryer and more!

pdf Download overview brochure here


Speak to us about your requirement

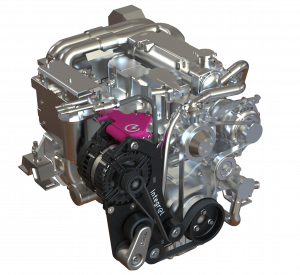

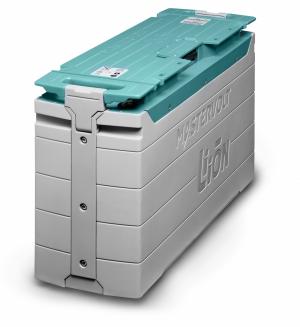

E-Power on Yanmar6707 mliultimatervIntegrel E-Power

1Silent Operation

In partnership with Fathom e-power system / Mastervolt, powered by Integrel Solutions, we can power all on-board appliances without as an alternative to a generator. Integrel ensures a tranquil boating experience with its silent operation.

2Generate Up To 18KW

Integrel generates up to 18kW of energy with a dual system on a catamaran. Smaller boats and monohulls can generate 9kW with a single system.

Untitled-design-51Home Comforts

The convenience of home comfort at sea has never been easier. A cool, comfortable night's sleep, a morning coffee, and an ice-cold drink in the afternoon, all powered by Integrel Solutions.

4Fully Automatic

It just works! Our system works quietly in the background, with very little need for user intervention. The engine and batteries are carefully monitored, and it even warns you when the batteries need recharging.

6Reduced Costs

Along with reduced maintenance and marina costs, the Integrel system does not require a separate engine. This makes fitting costs less than a stand-alone generator with no need for through-hull fittings and separate cooling systems.

5Reduced Emissions

The Integrel system improves the fuel efficiency of the propulsion engine up to 25%, reducing overall vessel fuel consumption. It is fully automatic, managing electrical power generation, storage, conversion and distribution in one package.


Trusted by boat builders around the world...



download (1)
Jeanneau-logo-9FCDD6E774-seeklogo.com
logo-sign-communication-fountaine-pajot-1
LOGO BALI 2018
images


FAQs

How much power does Integrel E-Power generate?

Up to 18kW!  The Integrel E-Power can generate up to 9kW of energy for a monohull and up to 18kW of energy on a multihull as you’ll need two systems.

What are the differences between a generator and Integrel E-Power?

The most obvious difference is that Integrel E-Power does not require a separate engine. This means that the fitting costs are less than for a stand-alone generator with no need for through-hull fittings and no separate fuel, exhaust or cooling systems. Lifetime maintenance costs are also substantially less as E-Power only needs a periodic belt change; no more second engine checks and maintenance schedules.

Integrel E-Power also improves the fuel efficiency of the propulsion engine, reducing overall vessel fuel consumption by up to 25%. It is fully automatic, managing electrical power generation, storage, conversion and distribution in one package.

Our system lets you reduce the size of your 12V and 24V house battery banks with its powerful battery-to-battery charging capability, and reduces the size and weight of the cabling for power hungry consumers such as bow thrusters, windlasses and winches.

Why does a catamaran need two Integrel E-Power systems?

The Integrel E-Power system is self-organising and can run with two units connected together, sharing the load as needed with no user intervention required. Two systems provide redundancy and balanced engine running hours; they can also charge multiple battery banks at twice the rate of a single system and can support high continuous loads.

How is Integrel E-Power different from a high power alternator?

Integrel E-Power is a complete power generation, storage, conversion and distribution system.

Integrel E-Power is very different from a conventional high-power alternator:

  • E-Power delivers rated power continuously. For example, with an ambient temperature of 25°C, the generator delivers a constant 8.3kW.
  • The coupling of the magnetic flux between the rotor and stator has been dramatically improved to give a very high generation efficiency.
  • The windings have been designed to give the specific voltage range needed and to provide unusually high power output at low revs. With a suitable engine, up to 3.5kW of DC output power is available at low engine idle.
  • E-Power itself has no embedded electronics and much improved cooling airflow to better manage high power output.
  • The customised engine mountings are specifically designed to minimise side loads on the engine, eliminate shock loading, and maximise belt life.

What does your Warranty Policy cover?

A full copy of our Warranty Policy can be found here.

Transform your power system with the cutting-edge Integrel E-Power solution, offering seamless energy generation while you sail. Say goodbye to traditional diesel generators and hello to efficient, on-demand power for all your onboard appliances.

Want to learn more? Contact us today to explore how the Integrel system can enhance your boating experience and keep you powered up wherever the journey takes you!
