Parallel Operation - Load Switching

Two Panda AC generators can be connected together to operate as one unit. This system does not feature full load-sharing capabilities for safety reasons and to keep the system simple to operate. The generators' output is synchronised and either combined or switched from one generator to the other. To increase operational safety both generators are shutdown if a system failure occurs.

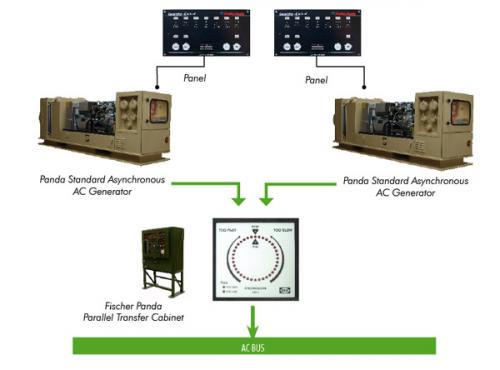

parallel power load switching

This video demonstrates how electrical sources are switched/combined using two Fischer Panda generators depending on the current requirements for defence applications running varying loads.

Parallel Operation - Load Sharing

Fischer Panda PMGi Generators with VSCF - 'Variable Speed Constant Frequency' technology allow full load sharing capabilities. Each generator can run at a differing speed while operating in parallel. Multiple generators can be coupled and operate together as one unit.

parallel power load sharing 01
