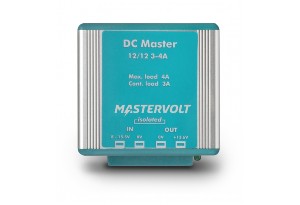

Mastervolt DC Master 12/12-3 (Isolated)
Mastervolt DC Master 12/12-3 (Isolated)
RRP£106.10 ex VAT
Your Buy Price£79.58 ex VAT
Please ask for AvailabilityProduct code: 81500600
Manufacturer: Mastervolt
he required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.
- Recreational and semi-professional use.
- Easy to install using included mounting bracket.
- Excellent price/performance ratio.
- Available in isolated and non-isolated version.
Intelligent DC-DC converters
A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.
Complete package
All DC Master converters are delivered with mounting bracket, screws and fasteners.
General specifications |
||
| Nominal output voltage | 13.6 V | |
| Max. output power | 54 W | |
| Nominal output power | 41 W | |
| Max. output current (for 2 min. intervals) | 4 A | |
| Continuous output current | 3 A | |
| Nominal input voltage | 12 V | |
| Input voltage range (max.) | 10-15.5 V DC (16 V) | |
| Galvanic isolation | yes | |
| Stabilised | yes | |
| Dimensions, hxwxd | 89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch |
|
| Weight | 0.28 kg 0.6 lb |
|
| Compliance | CE, E-mark | |
Technical specifications |
||
| DC consumption | < 15 mA | |
| Connections | fast-on | |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 30 °C -13 °F to 176 °F |
|
| Cooling | natural cooling | |
| Protection degree | IP53 | |
The non-isolated DC Master models have an electrical connection between the input and output.
Features:
-
Low costs.
- Efficient: low heat generation.
- Compact.
- Suited to applications with negative earthing.
The isolated DC Master models provide galvanic isolation between input and output circuits.
Features:
-
Extra touch-proof.
- Interference suppression for sensitive equipment.
- Available with negative or positive grounding.
Intelligent DC-DC converters
A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.
Complete package
All DC Master converters are delivered with mounting bracket, screws and fasteners.
General specifications |
||
| Nominal output voltage | 13.6 V | |
| Max. output power | 54 W | |
| Nominal output power | 41 W | |
| Max. output current (for 2 min. intervals) | 4 A | |
| Continuous output current | 3 A | |
| Nominal input voltage | 12 V | |
| Input voltage range (max.) | 10-15.5 V DC (16 V) | |
| Galvanic isolation | yes | |
| Stabilised | yes | |
| Dimensions, hxwxd | 89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch |
|
| Weight | 0.28 kg 0.6 lb |
|
| Compliance | CE, E-mark | |
Technical specifications |
||
| DC consumption | < 15 mA | |
| Connections | fast-on | |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 30 °C -13 °F to 176 °F |
|
| Cooling | natural cooling | |
| Protection degree | IP53 | |
The non-isolated DC Master models have an electrical connection between the input and output.
Features:
-
Low costs.
- Efficient: low heat generation.
- Compact.
- Suited to applications with negative earthing.
The isolated DC Master models provide galvanic isolation between input and output circuits.
Features:
-
Extra touch-proof.
- Interference suppression for sensitive equipment.
- Available with negative or positive grounding.
