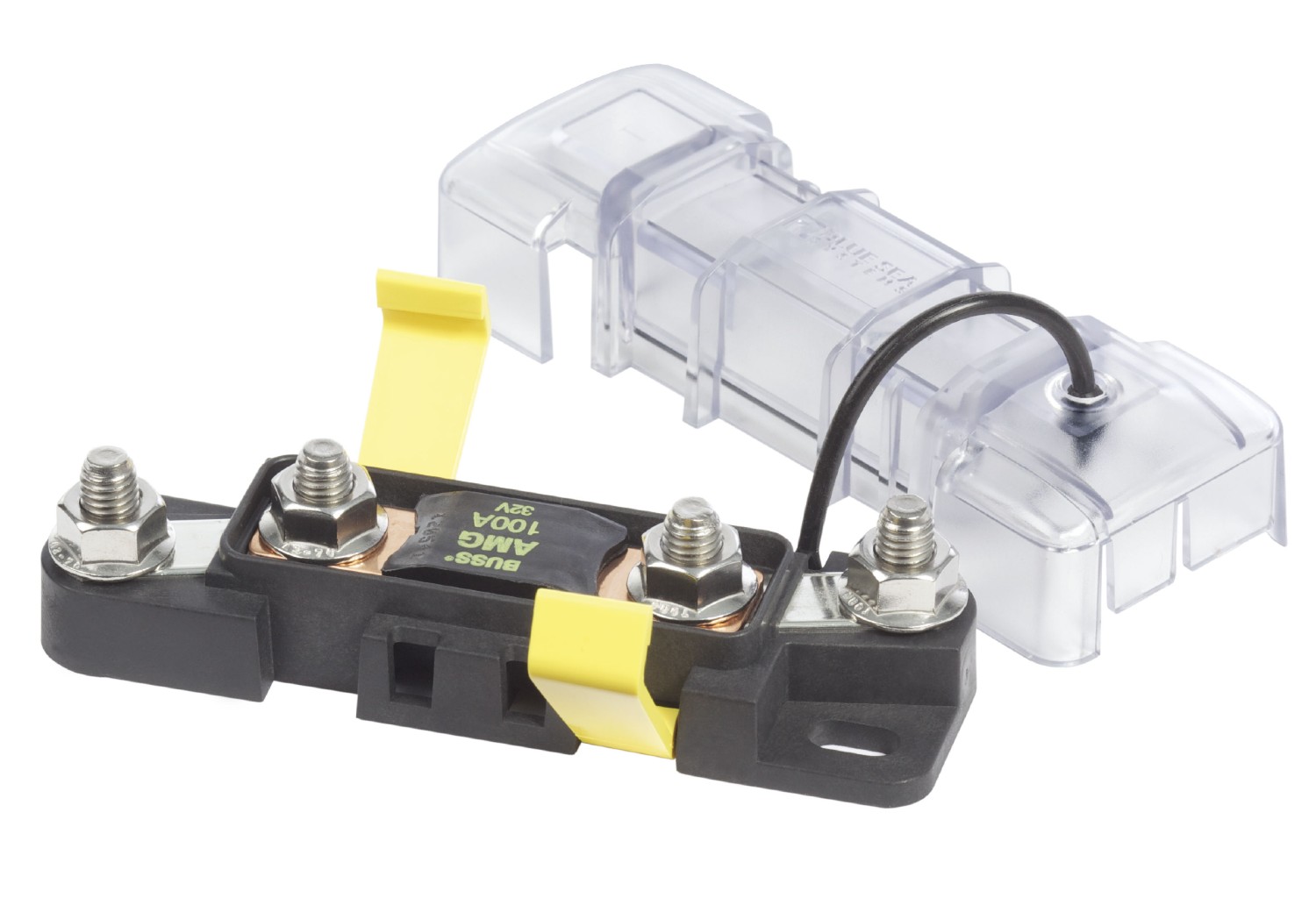

Blue Sea Systems Fuse Block Safety SEA/AMG
Product code: 7721-BSS
Manufacturer: Blue Sea Systems
Ignition protected for installation aboard gasoline or diesel powered boats
Sealed cover protects fuses from the harsh marine environment
Insulating cover satisfies ABYC/USCG insulation requirements
Cover breakouts allow wire access in any direction
300A maximum with 4/0 cable
Accepts Blue Sea Systems Square Format standard or custom label
Fuses sold separately
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Maximum Amperage | 300A |
| Maximum Voltage | 32V DC |
| Stud Size | M8 x 1.25 |
| Recommended Stud Torque | 120 in-lb (13.56 N·m) |
| Ring Terminal Size | M8 (5/16") |
| Weight | 0.15lb (0.07 kg) |
Specifications |
|
|---|---|
| Maximum Amperage | 300A |
| Maximum Voltage | 32V DC |
| Stud Size | M8 x 1.25 |
| Recommended Stud Torque | 120 in-lb (13.56 N·m) |
| Ring Terminal Size | M8 (5/16") |
| Weight | 0.15lb (0.07 kg) |
