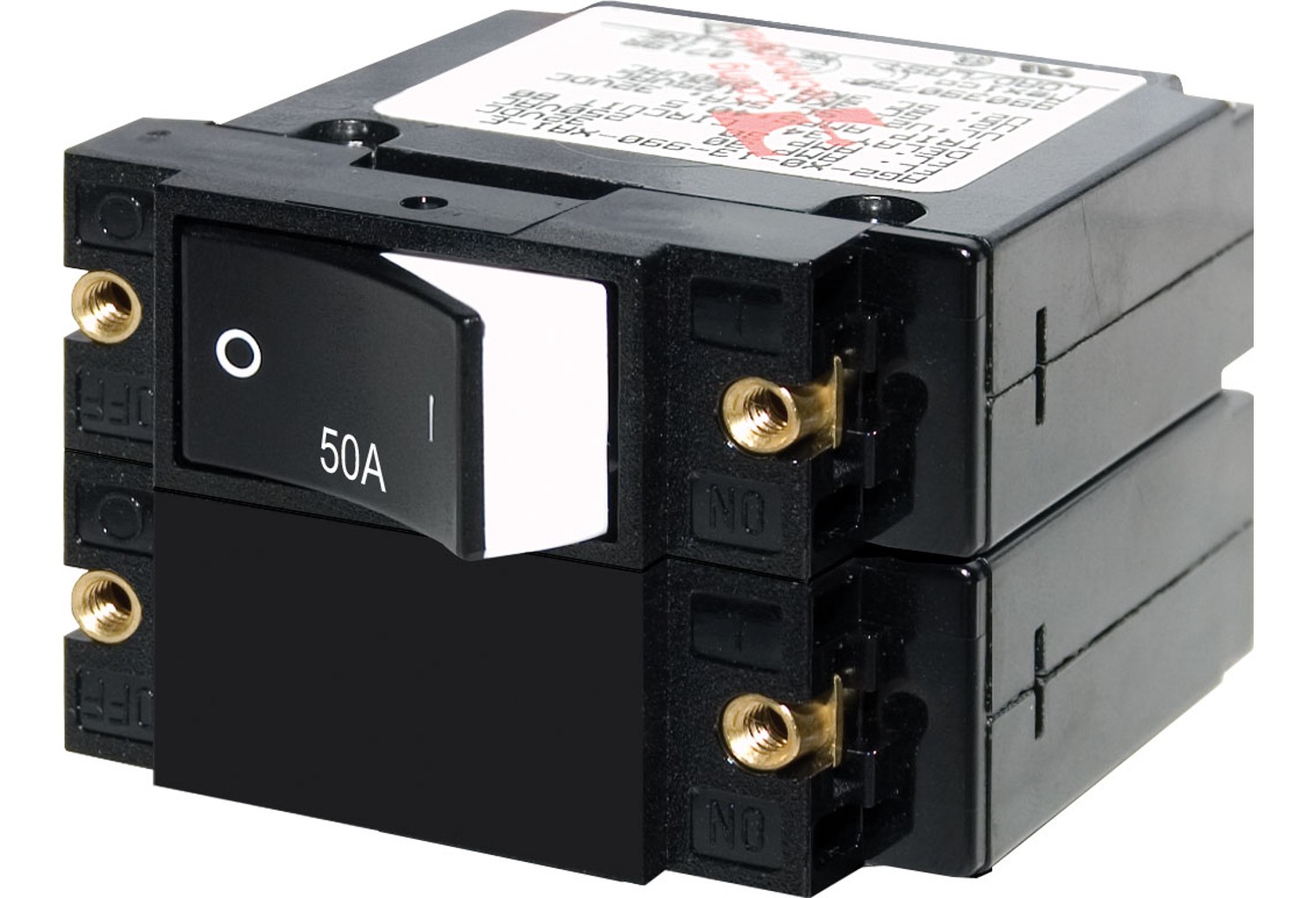

Blue Sea Systems Circuit Breaker A-Series Double Pole Raised Rocker Rocker 50A

RRP
ex VAT

Please ask for Availability

Product code: 7577-BSS

Manufacturer: Blue Sea Systems

Color actuator indicates “OFF” position

“Trip Free” design cannot be held “ON” during fault current condition

International ON/OFF symbols support vertical or horizontal mounting

*** For trade enquiries please contact us using the form below ***

Specifications
Amperage	50A AC 50A DC
Actuator Style	Raised Rocker
Poles	2
Maximum Voltage	120V AC 240V AC 32V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	3000A @ 240V AC 1500A @ 240V AC[TUV] 5000A @ 32V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10000
Terminal Screws	#10-32 Stainless Steel
Weight	0.38lb (0.17 kg)
Weight	0.38lb (0.17 kg)

Specifications
Amperage	50A AC 50A DC
Actuator Style	Raised Rocker
Poles	2
Maximum Voltage	120V AC 240V AC 32V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	3000A @ 240V AC 1500A @ 240V AC[TUV] 5000A @ 32V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10000
Terminal Screws	#10-32 Stainless Steel
Weight	0.38lb (0.17 kg)
Weight	0.38lb (0.17 kg)

We want to support you with all of your requirements so please contact us to discuss further.
