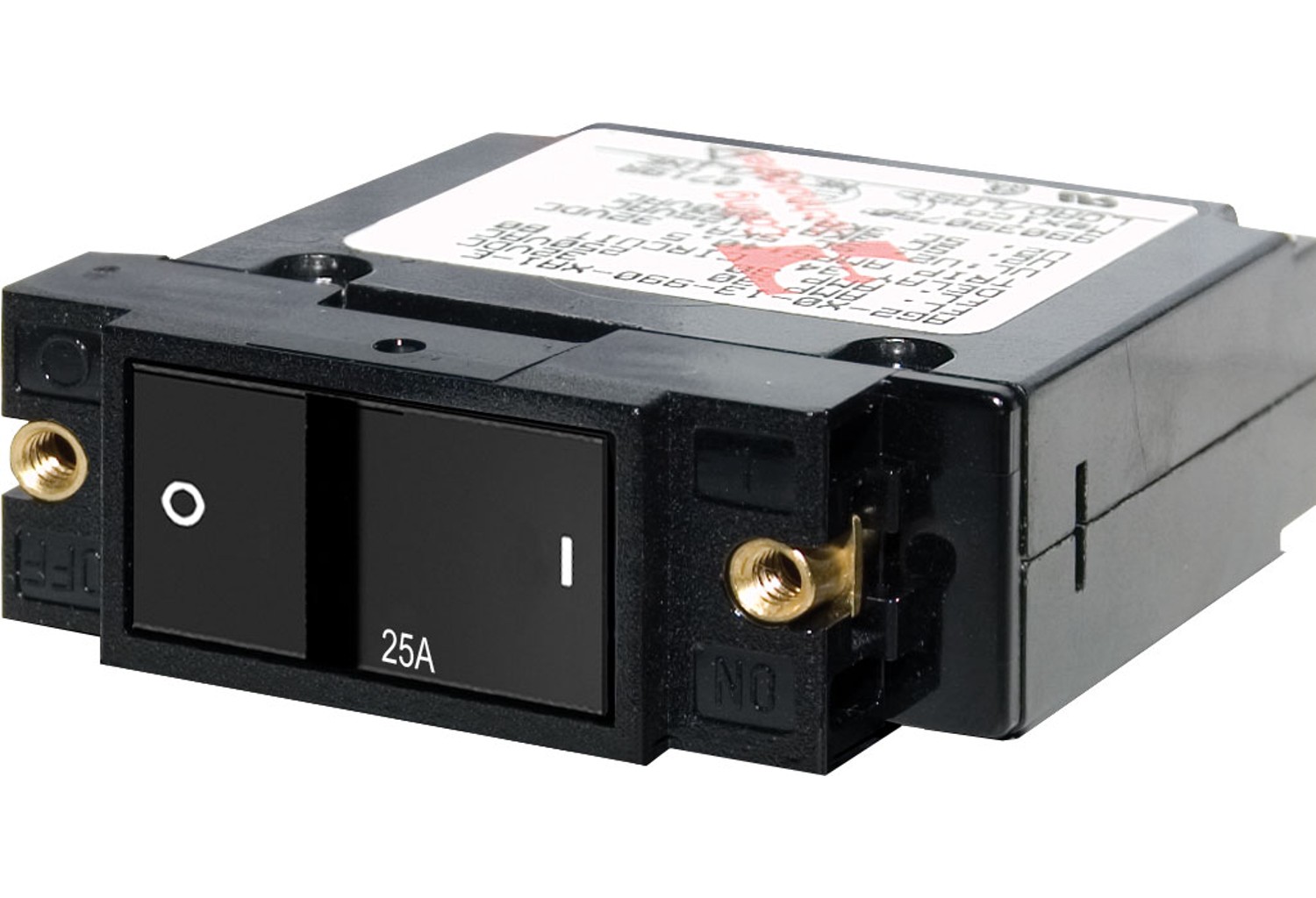

Blue Sea Systems Circuit Breaker A-Series Single Pole Flat Rocker 25A

RRP
ex VAT

Please ask for Availability

Product code: 7405-BSS

Manufacturer: Blue Sea Systems

Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching

Color actuator indicates “OFF” position

“Trip Free” design cannot be held “ON” during fault current condition

2 different actuator styles available

Prevents accidental switching of 24 hour circuits

International ON/OFF symbols support vertical or horizontal mounting

*** For trade enquiries please contact us using the form below ***

Specifications
Amperage	25A AC 25A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC 32V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	3000A @ 125V AC 1500A @ 240V AC 5000A @ 32V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10000
Terminal Screws	#10-32 Stainless Steel
Weight	0.16lb (0.07 kg)
Weight	0.18lb (0.08 kg)

Specifications
Amperage	25A AC 25A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC 32V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	3000A @ 125V AC 1500A @ 240V AC 5000A @ 32V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10000
Terminal Screws	#10-32 Stainless Steel
Weight	0.16lb (0.07 kg)
Weight	0.18lb (0.08 kg)

We want to support you with all of your requirements so please contact us to discuss further.
