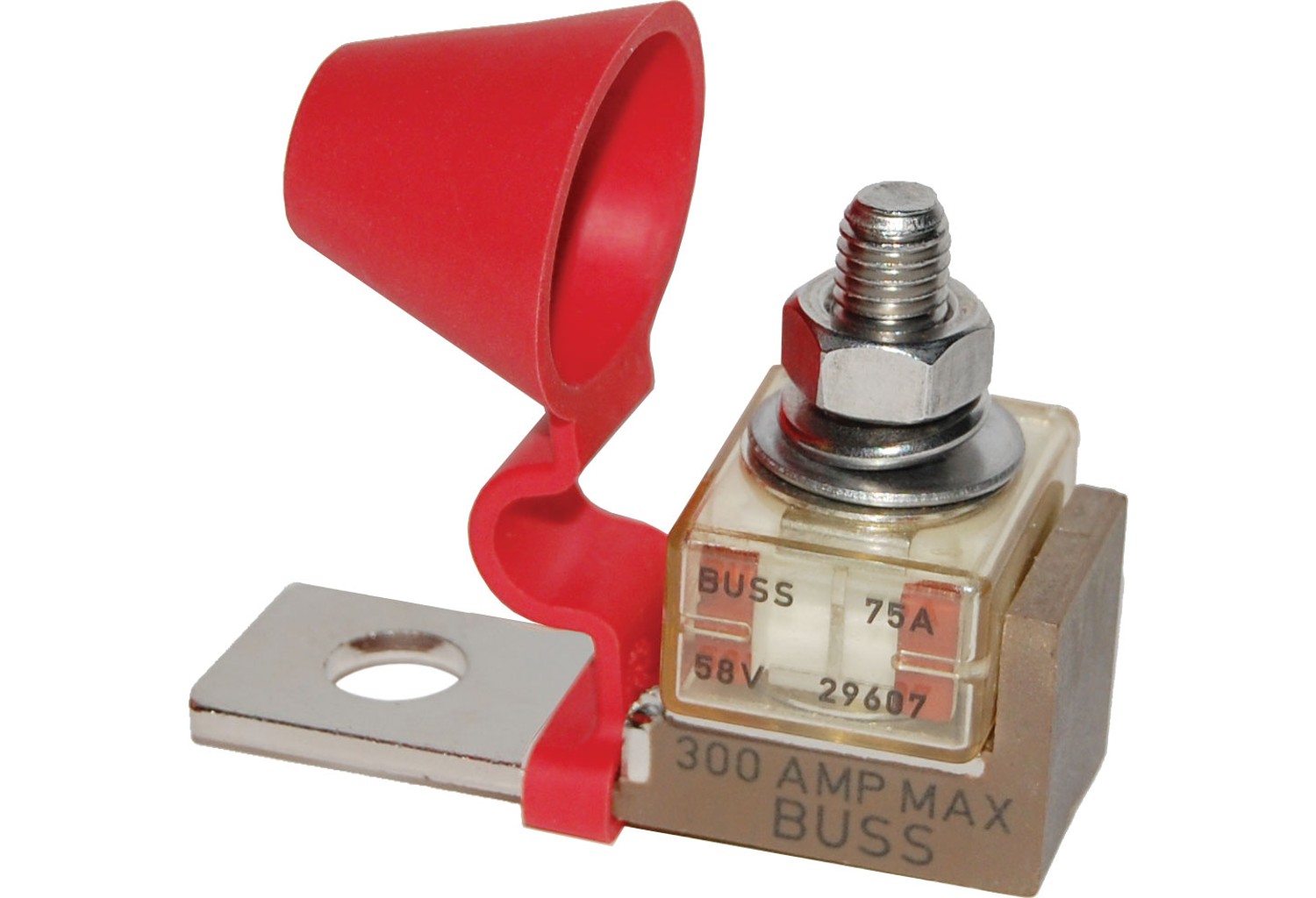

Blue Sea Systems Fuse Block TERMINAL 30-300A
Product code: 5191-BSS
Manufacturer: Blue Sea Systems
Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
Provides high current protection in tight space constraints
Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
Isolated stud design uses standard M8 hardware and permits stacking of terminals
Insulating cap prevents accidental shorts
Accepts 5∕16" ring terminals
Mounts on 3/8” terminal studs
Fuse sold separately
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Ignition Protected | No |
| Maximum Amperage | 300A |
| Maximum Voltage | 58V DC |
| Terminal Stud | M8 (5/16") |
| Maximum Torque | 75 in-lb (8.47 Nm) |
| Weight | 0.16lb (0.07 kg) |
Specifications |
|
|---|---|
| Ignition Protected | No |
| Maximum Amperage | 300A |
| Maximum Voltage | 58V DC |
| Terminal Stud | M8 (5/16") |
| Maximum Torque | 75 in-lb (8.47 Nm) |
| Weight | 0.16lb (0.07 kg) |
