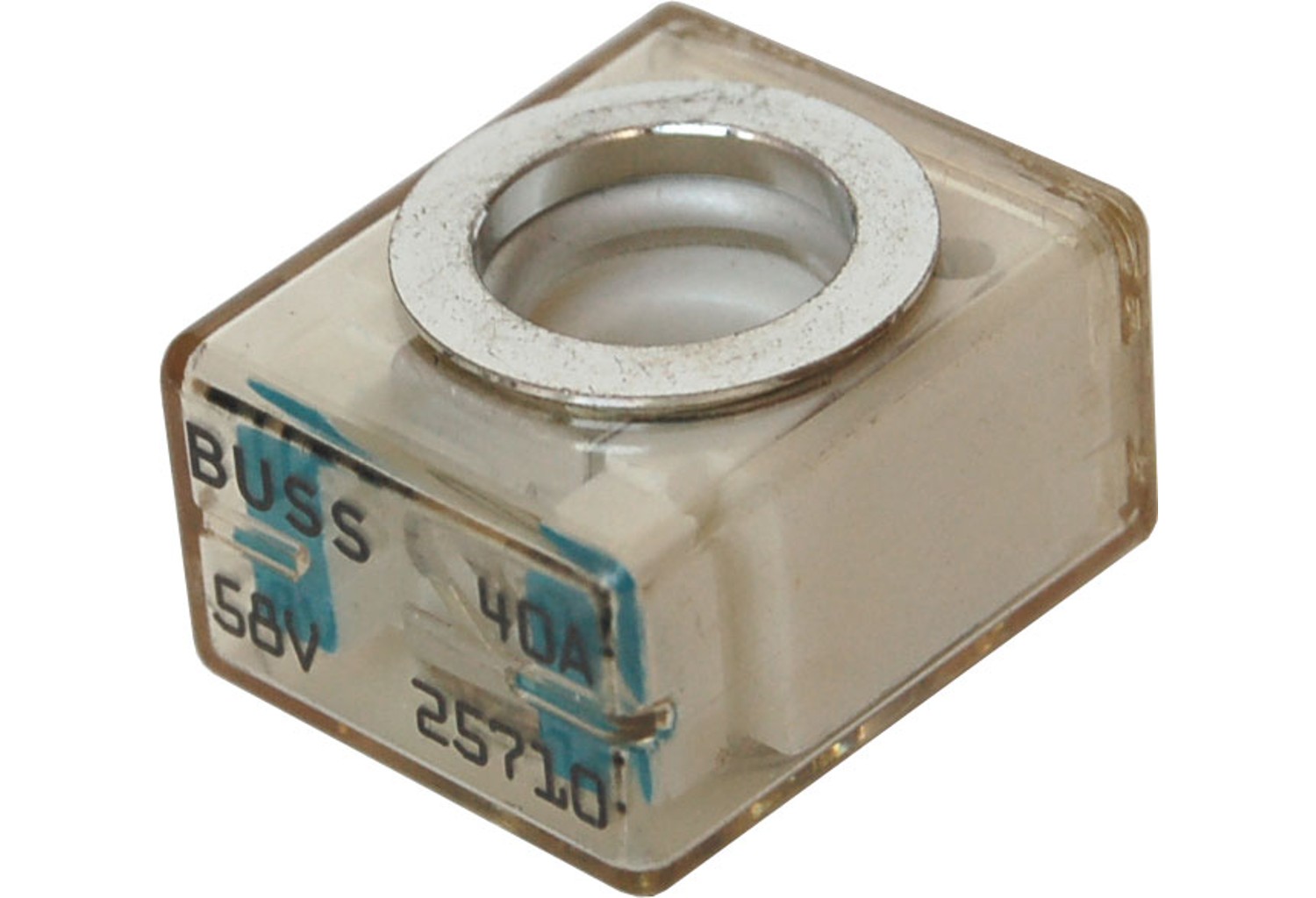

Blue Sea Systems Fuse Terminal 40A
Product code: 5176-BSS
Manufacturer: Blue Sea Systems
Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal
Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
Ignition protected—safe for installation aboard gasoline powered boats
Clear window—visual indication of blown condition
Color coded for each amperage
*** For trade enquiries please contact us using the form below ***
Specifications |
|
|---|---|
| Amperage | 40A |
| Ignition Protected | Yes |
| Maximum Voltage | 58V DC |
| Interrupt Capacity | 10000A @ 14V DC 5000A @ 32V DC 2000A @ 58V DC |
| Weight | 0.06lb (0.03 kg) |
Specifications |
|
|---|---|
| Amperage | 40A |
| Ignition Protected | Yes |
| Maximum Voltage | 58V DC |
| Interrupt Capacity | 10000A @ 14V DC 5000A @ 32V DC 2000A @ 58V DC |
| Weight | 0.06lb (0.03 kg) |
