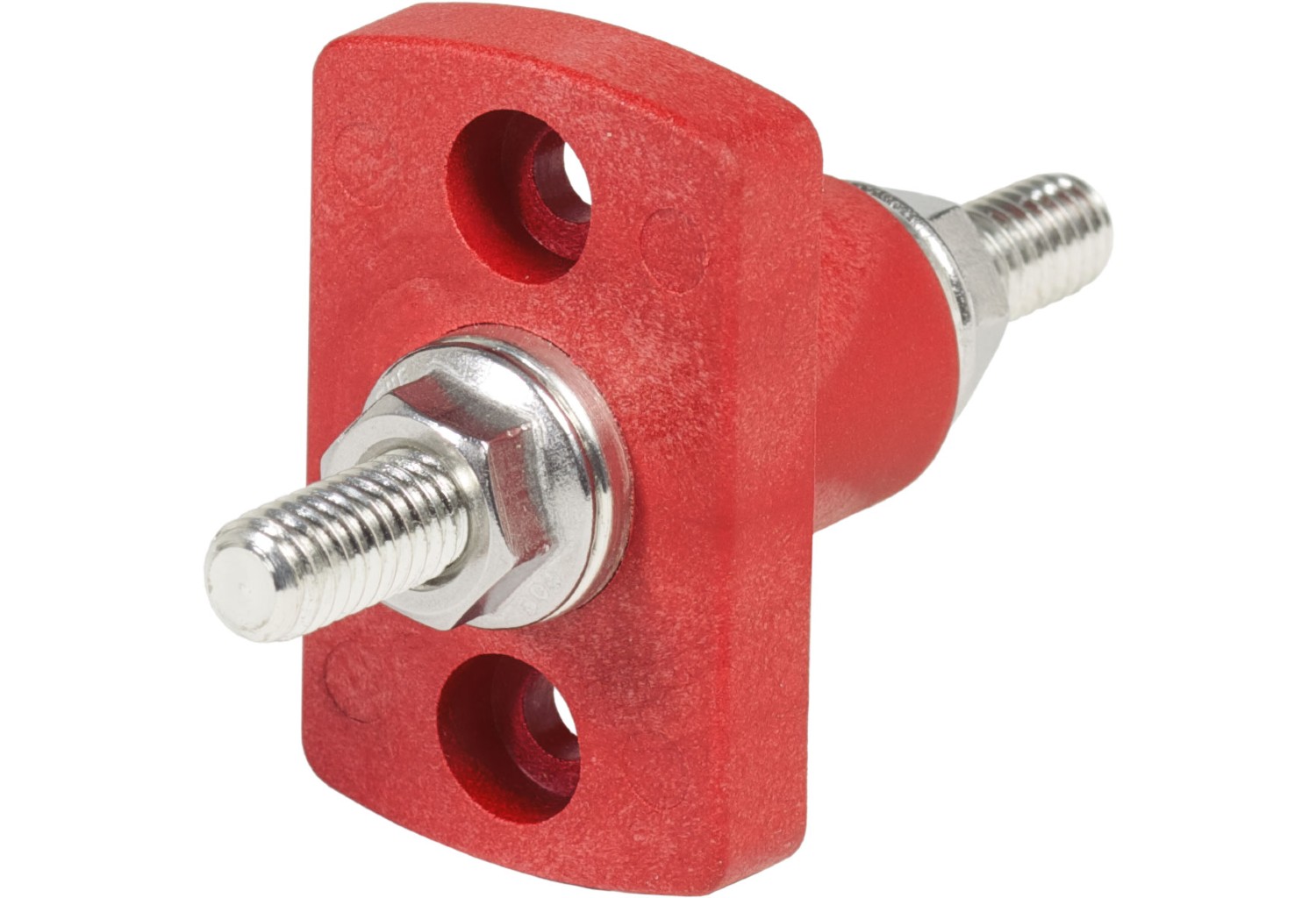

Blue Sea Systems TermSm FeedThrough 5/16-18 Stud Red

blueseas-2202

Blue Sea Systems TermSm FeedThrough 5/16-18 Stud Red

RRP
ex VAT

Please ask for Availability

Contact Us

Product code: 2202-BSS

Manufacturer: Blue Sea Systems

Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads

  • Perfect for passing high current cables through hulls, decks and bulkheads
  • Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
  • Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
  • Rated IP66 — withstands water from heavy seas

*** For trade enquiries please contact us using the form below ***

Contact us

Specifications

Amperage 250A
Color Red
Maximum Voltage 48V DC
Stud Size 5/16"-18
Base Material Reinforced Thermoplastic
Stud Material Tin-Plated Copper Alloy
Weight 0.30lb (0.14 kg)

Specifications

Amperage 250A
Color Red
Maximum Voltage 48V DC
Stud Size 5/16"-18
Base Material Reinforced Thermoplastic
Stud Material Tin-Plated Copper Alloy
Weight 0.30lb (0.14 kg)
