Panda PVMV-N Fixed Generators

PANDA xControl

The original Panda concept - small, lightweight and quiet.

The original 3000rpm concept with Panda's latest digital based Xcontrol range from 6.8 - 75kW.

Using the reliable multi-cylinder Kubota diesel engine for sets up to 30kVA with reputable engine options for sets above this size and the Fischer Panda water-cooled asynchronous alternator, controlled by Fischer Panda's patented VCS (voltage control system) system.

Three alternator options available, HP1 - 1 phase, HP3 - 3 phase or DVS - mixed 1 phase and 3 phase up to the capacity of the system.

Options also available in 120V / 60Hz




Products

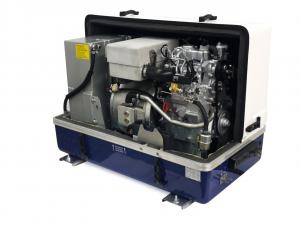

panda pvmv-n 8000x p2

PANDA 8000x PVMV-N

stage 5 v1

  • 230V AC output
  • Nominal Output 6.8kW (8.0kVA)
  • Weight -  230kg
  • Dimensions (mm) L870 x W515 x H634

FIND OUT MORE

panda pvmv-n 8000x p2

PANDA 10000x PVMV-N

stage 5 v1

  • 230V AC output
  • Nominal Output 8kW (9.4kVA)
  • Weight -  240kg
  • Dimensions (mm) L910 x W515 x H630

FIND OUT MORE

Panda 15i PVMV-N

PANDA 15000x PVMV-N

stage 5 v1

  • 230V AC output
  • Nominal Output 12.7kW (15kVA)
  • Weight -  316kg
  • Dimensions (mm) L1010 x W515 x H634

FIND OUT MORE

Fischer Panda AGT 16000 DC Generator p2

PANDA 18x PVMV-N

stage 5 v1

  • 230V AC output
  • Nominal Output 15.3kW (18kVA)
  • Weight -  415kg
  • Dimensions (mm) L1100 x W540 x H680

FIND OUT MORE

Screenshot 2024-08-08 093940

PANDA 30x CR PVM

stage 5 v1

  • 400V AC output (230v also available)
  • Nominal Output 25.5kW (30kVA)
  • Weight -  650kg
  • Dimensions (mm) L1200 x W620 x H860

FIND OUT MORE




Other models include:-

Panda 12000x PVMV-N  | Panda 24x PVMV-N | Panda 30x PVMV-N

Contact us if you require any further sales or technical advice.
