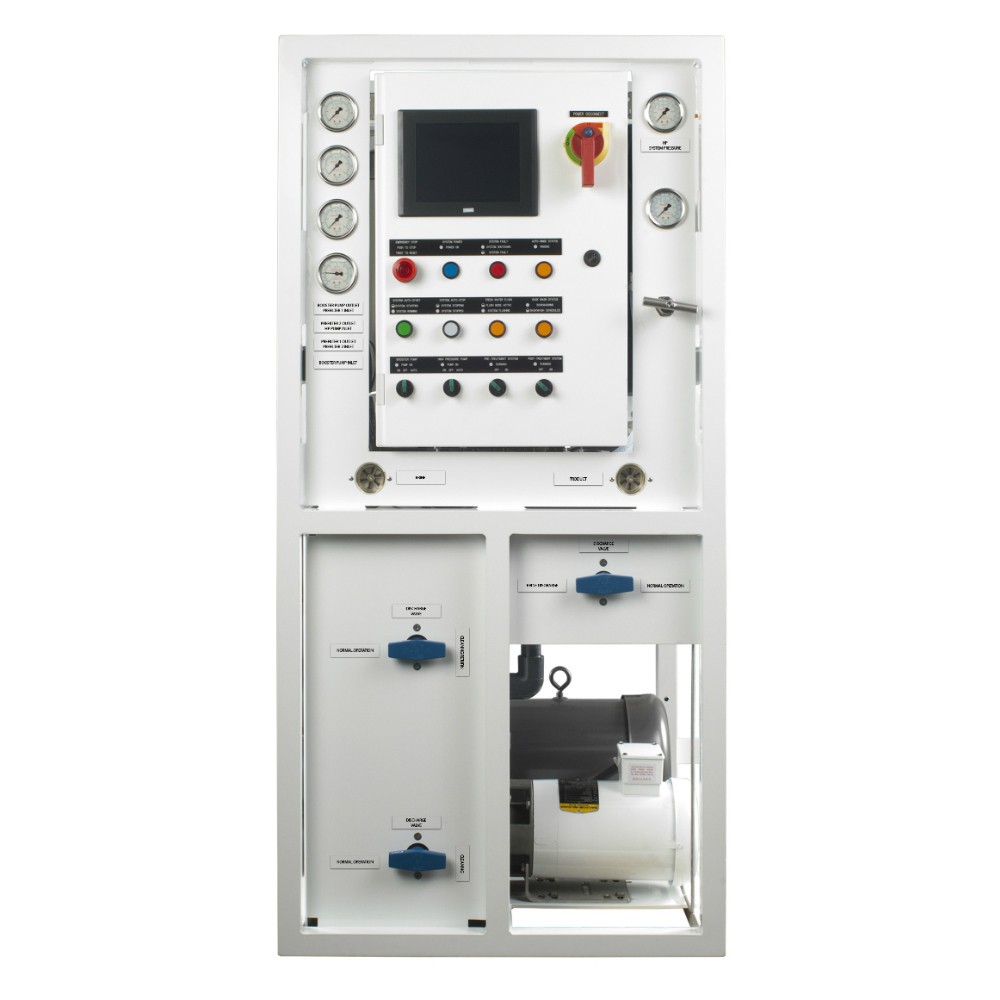

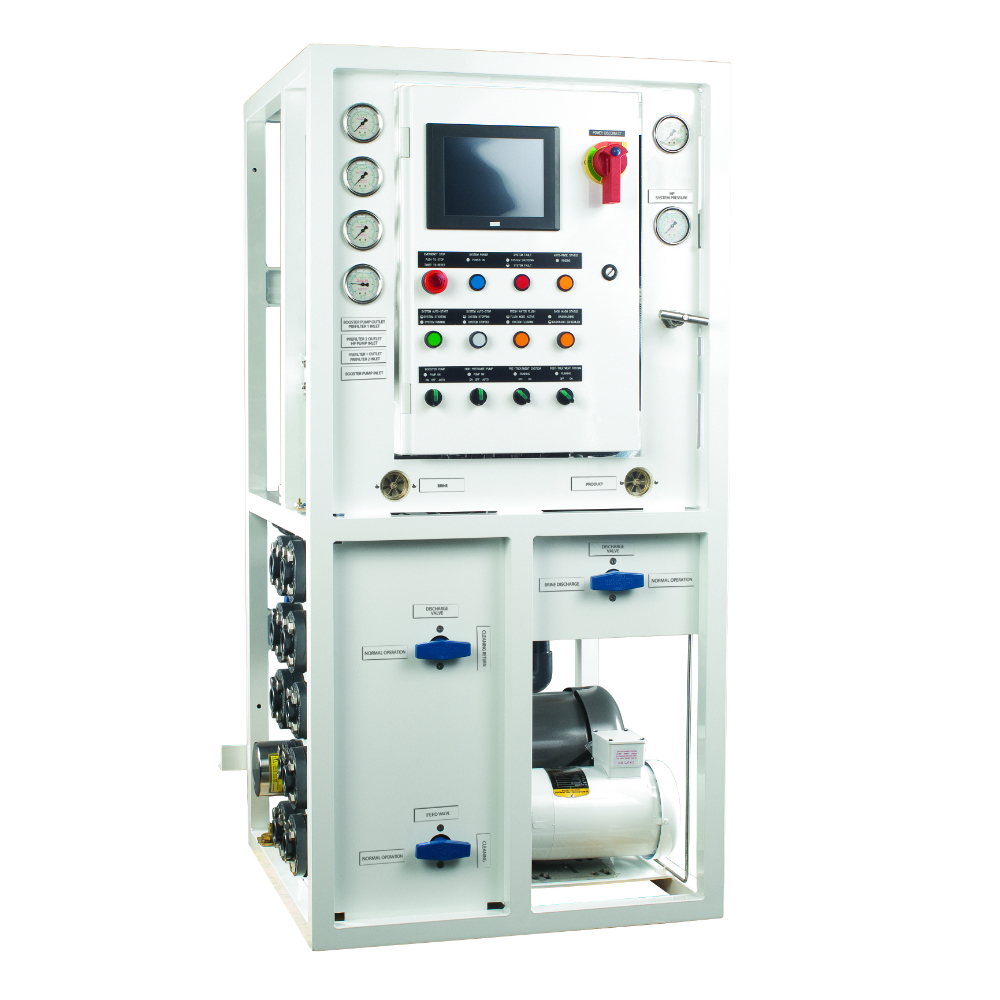

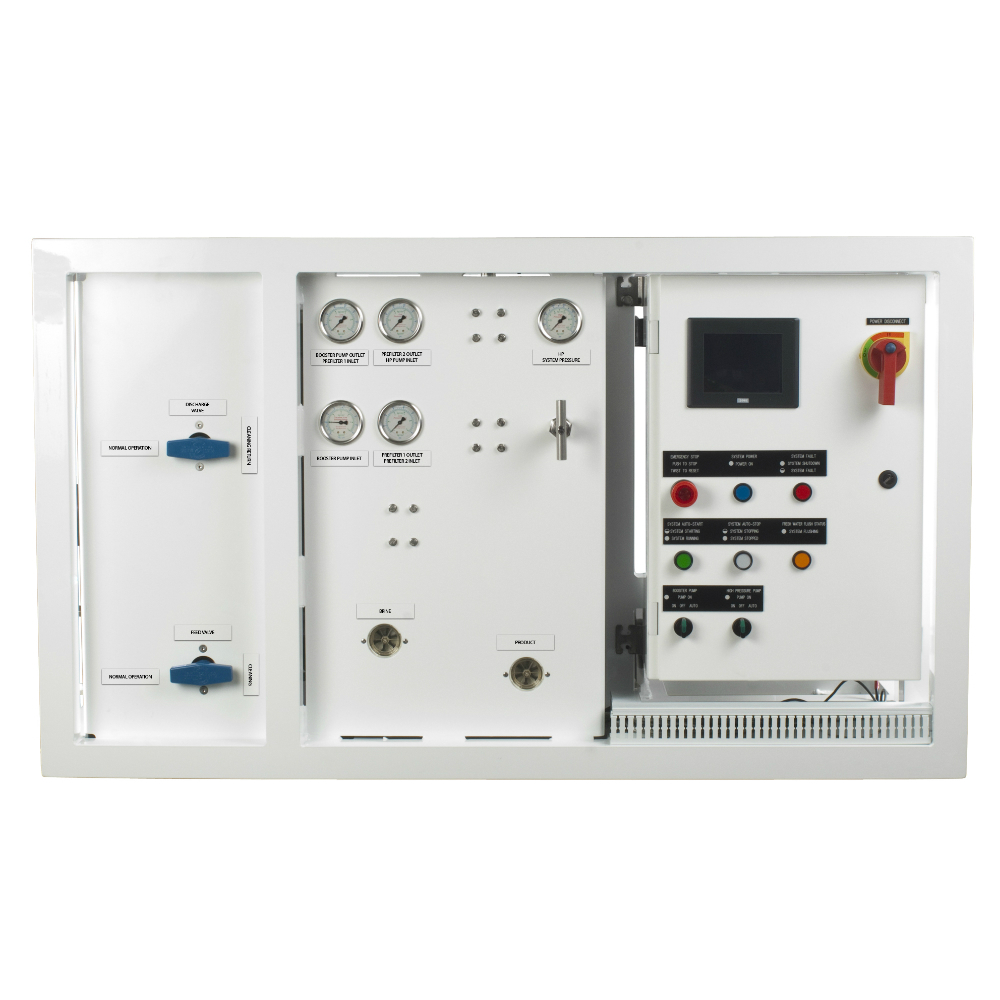

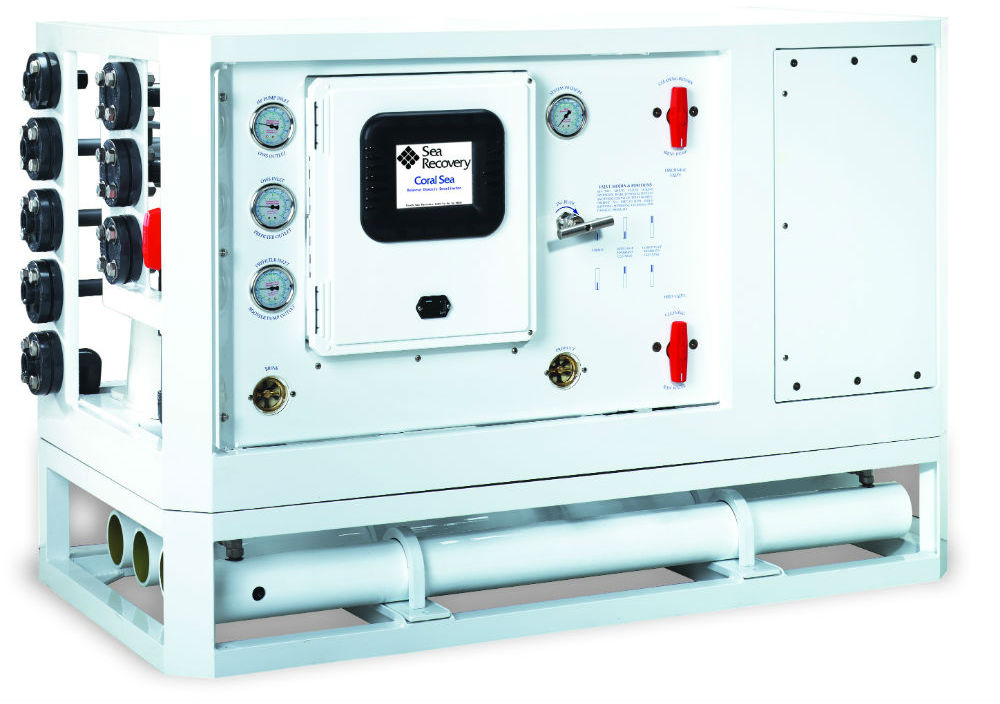

The Coral Sea Series creates the perfect watermaker for super yachts and other commercial clients by combining industrial strength production with space saving designs. Coral Sea systems are not only installed in luxury yachts, but are also regularly opted for on oil rigs and commercial vessels around the world.
| Model Number | Per 24 Hours - Gal / Lit | Per Hour - Gal / Lit | Weight |
|---|---|---|---|
| Coral Sea 2800 | 2,800 / 10.59 m3 | 699 / 442 | 980 lbs / 445 kg |
| Coral Sea 3600 | 2,600 / 13.62 m3 | 899 / 568 | 980 lbs / 445 kg |
| Coral Sea 4200 | 4,200 / 15.89 m3 | 1,050 / 662 | 980 lbs / 450 kg |
| Coral Sea 5200 | 5,200 / 19.68 m3 | 1,299 / 820 | 1,000 / 454 kg |
| Coral Sea 6200 | 6,200 / 23.46 m3 | 1,549 / 978 | 1,020 / 463 kg |
| Coral Sea 6800 | 6,800 / 25.73 m3 | 1,699 / 1,073 | 1,050 / 477 kg |
Different Voltage and Phase outputs are also available across various models.
| Electrical | Voltage / PH | Hz | HP Pump (Amps) | Booster (Amps) | FLA (Amps) |
|---|---|---|---|---|---|
| 2800 & 3600 | 220 / 1 PH | 50 | 7.5 | 2 | 39 |
| 4200 - 6800 | 460 / 3 PH | 50 | 10 | 2 | 16 |
Outfitting your Sea Recovery System with some of the options and accessories below will extend life to your watermaker and lower your maintenance costs.
Fresh Water Flush:
Extends the life of the membranes by rinsing them with fresh water by merely a touch of a button. The Fresh Water Flush automatically removes all salt water from internal parts of the system and flushes the membranes with clean fresh water every 7 days. This prevents salt water corrosion of the internal parts and reduces biological fouling of the RO membrane.
Chemical Injection:
Control the chemistry of the feed water to reduce and prevent fouling.
pH Neutralising Filter:
The pH Neutralising Filter provides pH neutralisation of the reverse osmosis system product water. It comes in various filter sizes to fit your needs.
U.V. Steriliser:
The Ultraviolet Steriliser is the final process where 99.8% of all micro-organisms, such as reproducing bacteria and viruses, are sterilised. Ultraviolet replacement U.V. lamps are also available. Please specify voltage.
